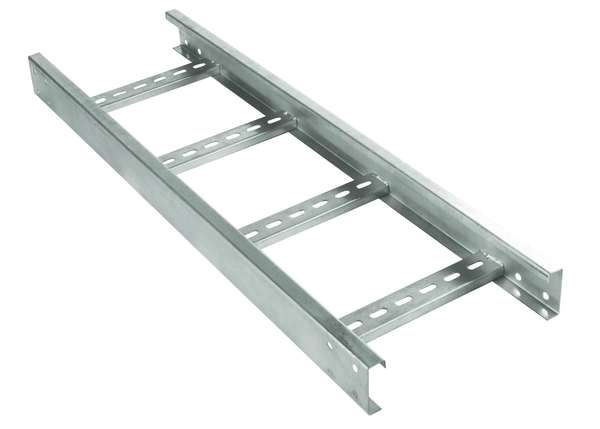

Ladder Cable Trays
Heavy-duty ladder cable trays designed for maximum cable support and easy installation. Ideal for industrial applications requiring high load capacity and superior cable routing.
Heavy-duty ladder cable trays designed for maximum cable support and easy installation. Ideal for industrial applications requiring high load capacity and superior cable routing.
Supports heavy cable bundles with reinforced steel construction
Simplified mounting and cable placement procedures
Hot-dip galvanized steel for corrosion resistance
Economical solution for large-scale installations
| Parameter | Specification |
|---|---|
| Width | 300mm - 600mm |
| Height | 50mm - 100mm |
| Standard Length | 3 meters |
| Wall Thickness | 1.2mm - 2.0mm |
| Weight (3m) | 25kg - 45kg |
Hot-dip galvanized steel (ASTM A123)
Up to 500kg per meter
-40°C to +60°C
IP54 rated for outdoor use
Universal mounting brackets included
300mm × 50mm - Ideal for confined spaces
Load: 250kg/m
400mm × 75mm - Most popular choice
Load: 350kg/m
600mm × 100mm - Maximum capacity
Load: 500kg/m
Power distribution and control cable routing in manufacturing facilities
Electrical and data cable management in office complexes
High-voltage cable support and organization systems
Signal and communication cable routing infrastructure
Temporary and permanent cable management solutions
Assembly line cable routing and management
Calculate cable tray run length and mounting points
Install support brackets at recommended intervals
Secure cable tray sections to mounting brackets
Arrange cables neatly and secure with clips
Contact us for detailed specifications, custom sizing, and competitive quotes
